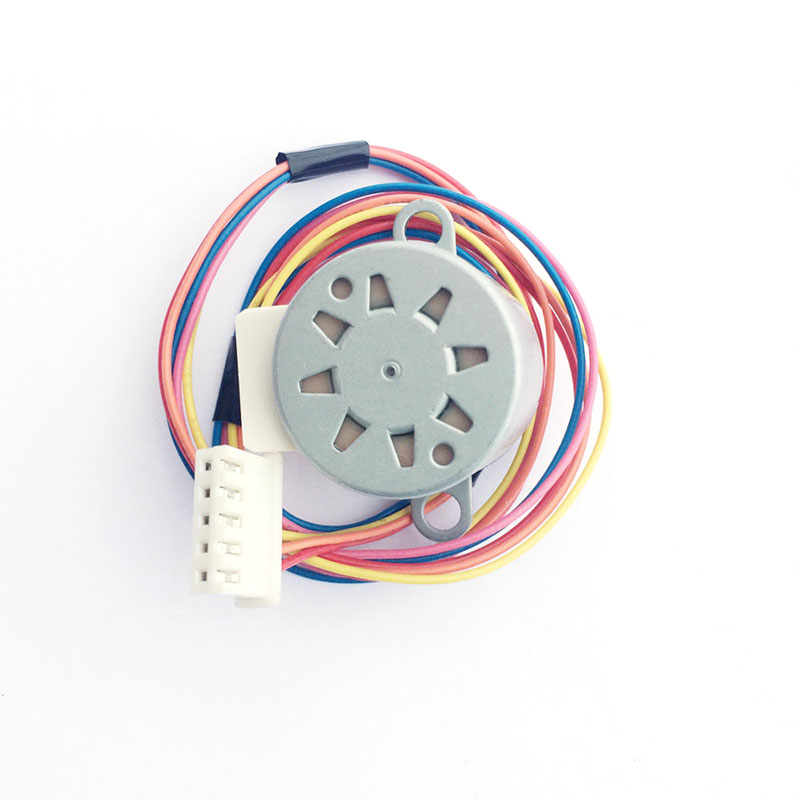

| Quantity: | |
|---|---|
| ITEM | Specifications | Unit | |||||
| Rated Voltage | 12/24 | VDC | |||||
| Current | 92 | 48 | 40 | 31.5 | 21.8 | mA | |
| Impedance | 130 | 250 | 300 | 380 | 550 | Ω | |
| Pull-in Torque (at 100pps) | 550 | 450 | 350 | 300 | 280 | gf - cm | |
| Step Angle | 7.5°/85.56 | ° | |||||
| Reduction Ratio | 1/85.56 | ||||||
| Phase | 4 | ||||||
| Detent Torque min | 400 | gf - cm | |||||
| Max Starting Pulse Rate | 500 | pps | |||||
| Max Starting Pulse Rate | 900 | pps | |||||
| Insulation Strength | AC 600V-1sec Cut-Off Current :10mA | ||||||
| Temperature Rise | 50 | deg | |||||
| Noise | 35 | dB | |||||
| Diameter of Model | ψ24.0 | mm | |||||
| Distance of Model (a) | 31.0 | 35.0 | mm | ||||
| Distance of Model (a1) | 65 | 6.5 | mm | ||||
| Height of Model | 19.0 | mm | |||||
| Item | Specification | Length of Lead Wire | Specificaton of Terminal |
| 1 | AWG 1095#28 | 240mm | JST SXH-001T-P0.6 |
| 2 | AWG 1095#28 | 420mm | JST SXH-002T-P0.5S |
| 3 | AWG 1095#28 | 420mm | JST SXH-OO1T-P0.6 |
| 4 | AWG 1095#28 | 1100mm | JST SXH-OO1T-P0.6 |
| ITEM | Specifications | Unit | |||||
| Rated Voltage | 12/24 | VDC | |||||
| Current | 92 | 48 | 40 | 31.5 | 21.8 | mA | |
| Impedance | 130 | 250 | 300 | 380 | 550 | Ω | |
| Pull-in Torque (at 100pps) | 550 | 450 | 350 | 300 | 280 | gf - cm | |
| Step Angle | 7.5°/85.56 | ° | |||||
| Reduction Ratio | 1/85.56 | ||||||
| Phase | 4 | ||||||
| Detent Torque min | 400 | gf - cm | |||||
| Max Starting Pulse Rate | 500 | pps | |||||
| Max Starting Pulse Rate | 900 | pps | |||||
| Insulation Strength | AC 600V-1sec Cut-Off Current :10mA | ||||||
| Temperature Rise | 50 | deg | |||||
| Noise | 35 | dB | |||||
| Diameter of Model | ψ24.0 | mm | |||||
| Distance of Model (a) | 31.0 | 35.0 | mm | ||||
| Distance of Model (a1) | 65 | 6.5 | mm | ||||
| Height of Model | 19.0 | mm | |||||
| Item | Specification | Length of Lead Wire | Specificaton of Terminal |
| 1 | AWG 1095#28 | 240mm | JST SXH-001T-P0.6 |
| 2 | AWG 1095#28 | 420mm | JST SXH-002T-P0.5S |
| 3 | AWG 1095#28 | 420mm | JST SXH-OO1T-P0.6 |
| 4 | AWG 1095#28 | 1100mm | JST SXH-OO1T-P0.6 |
