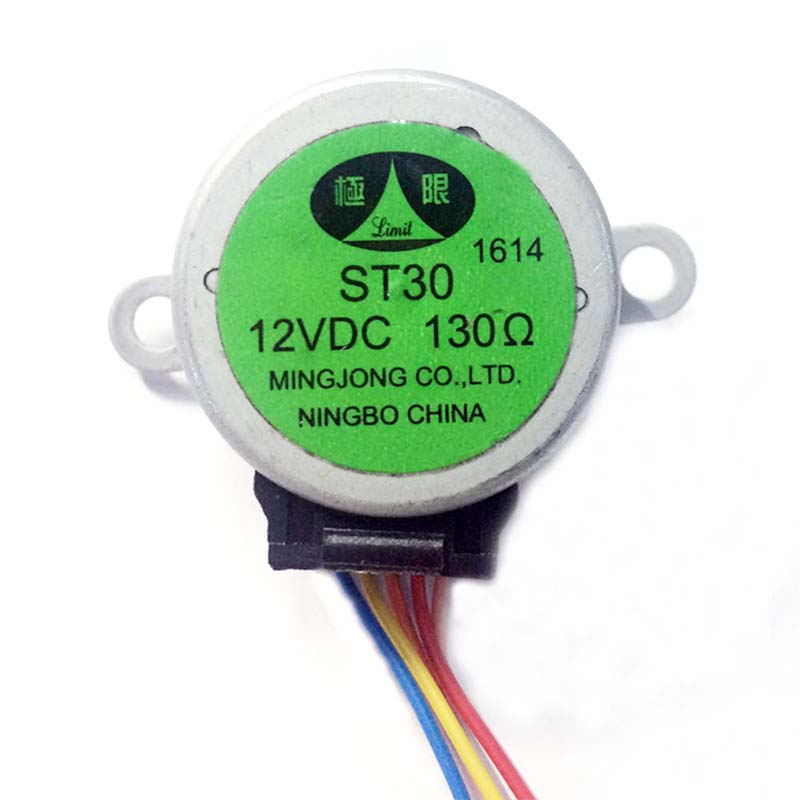

| Quantity: | |
|---|---|
| Item | Specifications | Unit | ||||
| Rated Voltage | 12 | VDC | ||||
| Current | 92 | 60 | 48 | 40 | 21.8 | mA |
| Impedance | 130 | 200 | 250 | 300 | 550 | Ω |
| Pull-in Torque (at 100pps) | 900 | 650 | 620 | 470 | 300 | gf - cm |
| Step Angle | 7.5°/85.56 | ° | ||||
| Reduction Ratio | 1/85.56 | |||||
| Phase | 4 | |||||
| Detent Torque min | 500 | gf - cm | ||||
| Max Starting Pulse Rate | 350 | pps | ||||
| Max Starting Pulse Rate | 800 | pps | ||||
| Insulation Strength | AC 600V-1sec Cut-Off Current :10mA | |||||
| Temperature Rise | 60 | deg | ||||
| Noise | 40 | dB | ||||
| Diameter of Model | ψ30.0 | mm | ||||
| Distance of Model (a) | 35.0 | 39.0 | 42.0 | mm | ||
| Distance of Model (a1) | 8.0 | 8.0 | 8.0 | mm | ||
| Height of Model | 17.2 | mm | ||||
| Item | Specification | Length of Lead Wire | Specificaton of Terminal |
| 1 | AWG 1095#28 | 240mm | JST SXH-001T-P0.6 |
| 2 | AWG 1095#28 | 420mm | JST SXH-002T-P0.5S |
| 3 | AWG 1095#28 | 420mm | JST SXH-OO1T-P0.6 |
| 4 | AWG 1095#28 | 1100mm | JST SXH-OO1T-P0.6 |
| Item | Specifications | Unit | ||||
| Rated Voltage | 12 | VDC | ||||
| Current | 92 | 60 | 48 | 40 | 21.8 | mA |
| Impedance | 130 | 200 | 250 | 300 | 550 | Ω |
| Pull-in Torque (at 100pps) | 900 | 650 | 620 | 470 | 300 | gf - cm |
| Step Angle | 7.5°/85.56 | ° | ||||
| Reduction Ratio | 1/85.56 | |||||
| Phase | 4 | |||||
| Detent Torque min | 500 | gf - cm | ||||
| Max Starting Pulse Rate | 350 | pps | ||||
| Max Starting Pulse Rate | 800 | pps | ||||
| Insulation Strength | AC 600V-1sec Cut-Off Current :10mA | |||||
| Temperature Rise | 60 | deg | ||||
| Noise | 40 | dB | ||||
| Diameter of Model | ψ30.0 | mm | ||||
| Distance of Model (a) | 35.0 | 39.0 | 42.0 | mm | ||
| Distance of Model (a1) | 8.0 | 8.0 | 8.0 | mm | ||
| Height of Model | 17.2 | mm | ||||
| Item | Specification | Length of Lead Wire | Specificaton of Terminal |
| 1 | AWG 1095#28 | 240mm | JST SXH-001T-P0.6 |
| 2 | AWG 1095#28 | 420mm | JST SXH-002T-P0.5S |
| 3 | AWG 1095#28 | 420mm | JST SXH-OO1T-P0.6 |
| 4 | AWG 1095#28 | 1100mm | JST SXH-OO1T-P0.6 |
