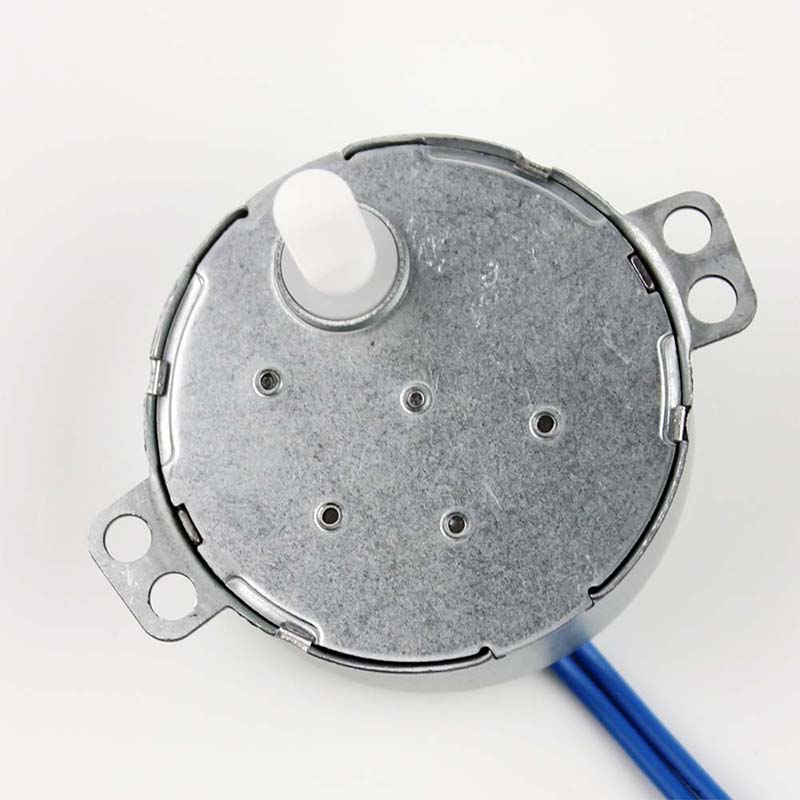

MS

Model:
MS
USAGE:
Office Machines, Automatic Control Machines, Spotlights, Toy and Presents, Recorders, Air Conditioner, Micro Wave Ovens

Quantity:


特性项目 规格 单位
Rated voltage 12 24 100 110 120 220 240
VAC
frequency 50/60 HZ

Turn to

Forward rotation, reverse rotation, free rotation


Rotating speed

2.5/3 3.3/4 4.2/5 5/6 8.3/10 10/12 20/24 30/36 R.P.M

Braking torque

7.0 6.0 5.0 4.0 2.0 2.0 1.0 0.8 kgf-cm
Slip torque 7~10 kgf-cm

Number of poles

8 Pole
power 3.8 / 4.0 W
Withstand voltage standard AC 1500V-1min  Detection current  10mA

Insulation class

E Class



MS规格1

MS规格2





项次 规格 出綫长度 裸綫
1 AWG 1007#22 200mm 10:10 Kathy
2 AWG 1007#22 450mm 10:10 Kathy
3 AWG 1007#22 700mm 10:10 Kathy
4 AWG 1015#22 200mm 10:10 Kathy
5 AWG 1015#22 450mm 10:10 Kathy
6 AWG 1015#22 700mm 10:10 Kathy
